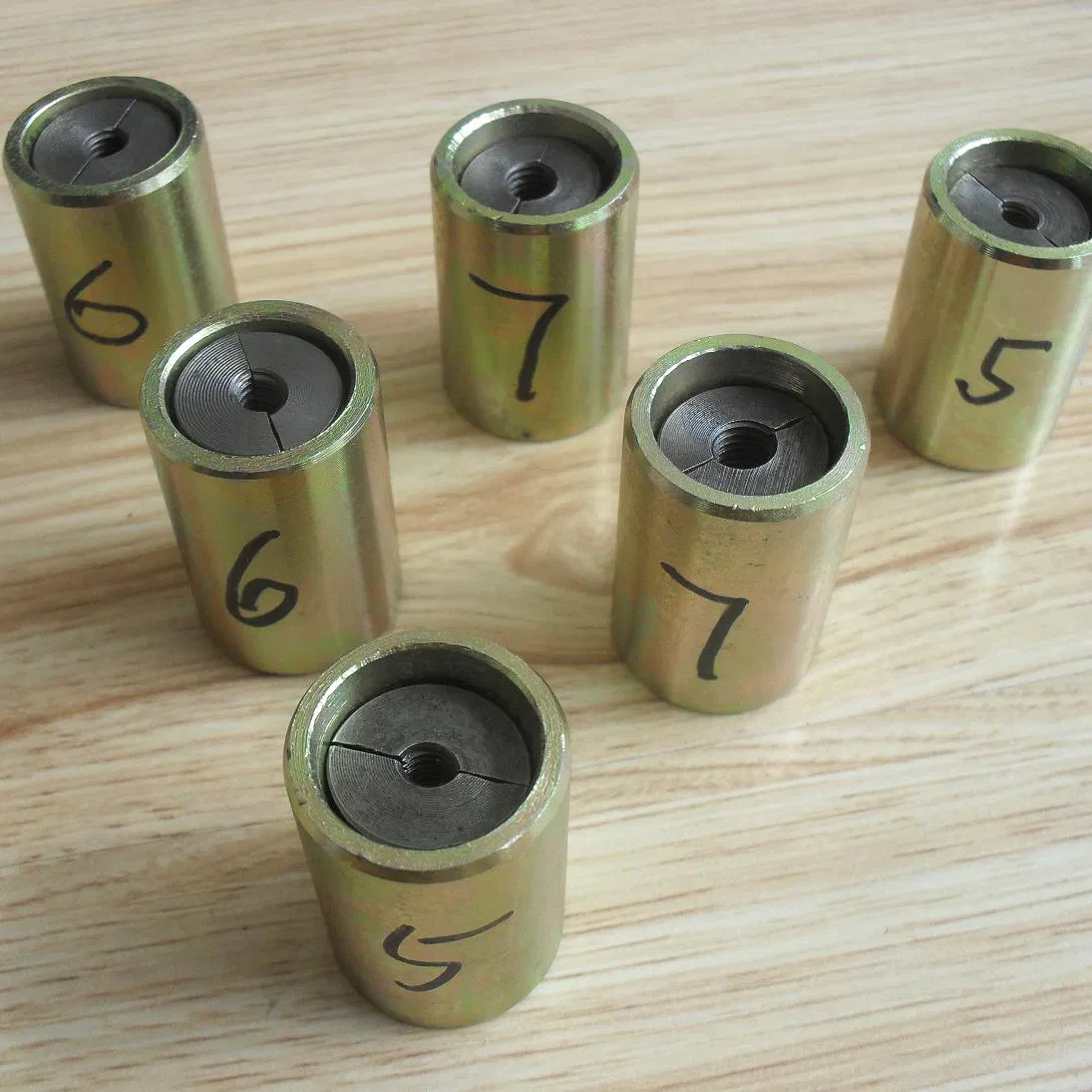

Anchor and Wedge for prestressed wire and strand
Prestressed Anchorage for PC Strand and PC Wire
Material: Alloy steel, carbon steel, cast iron, plastic.

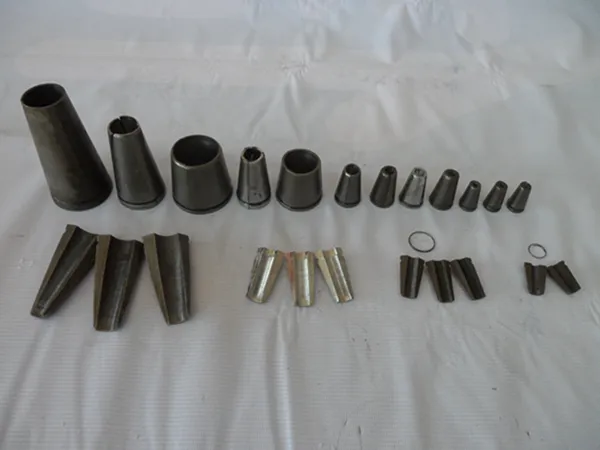

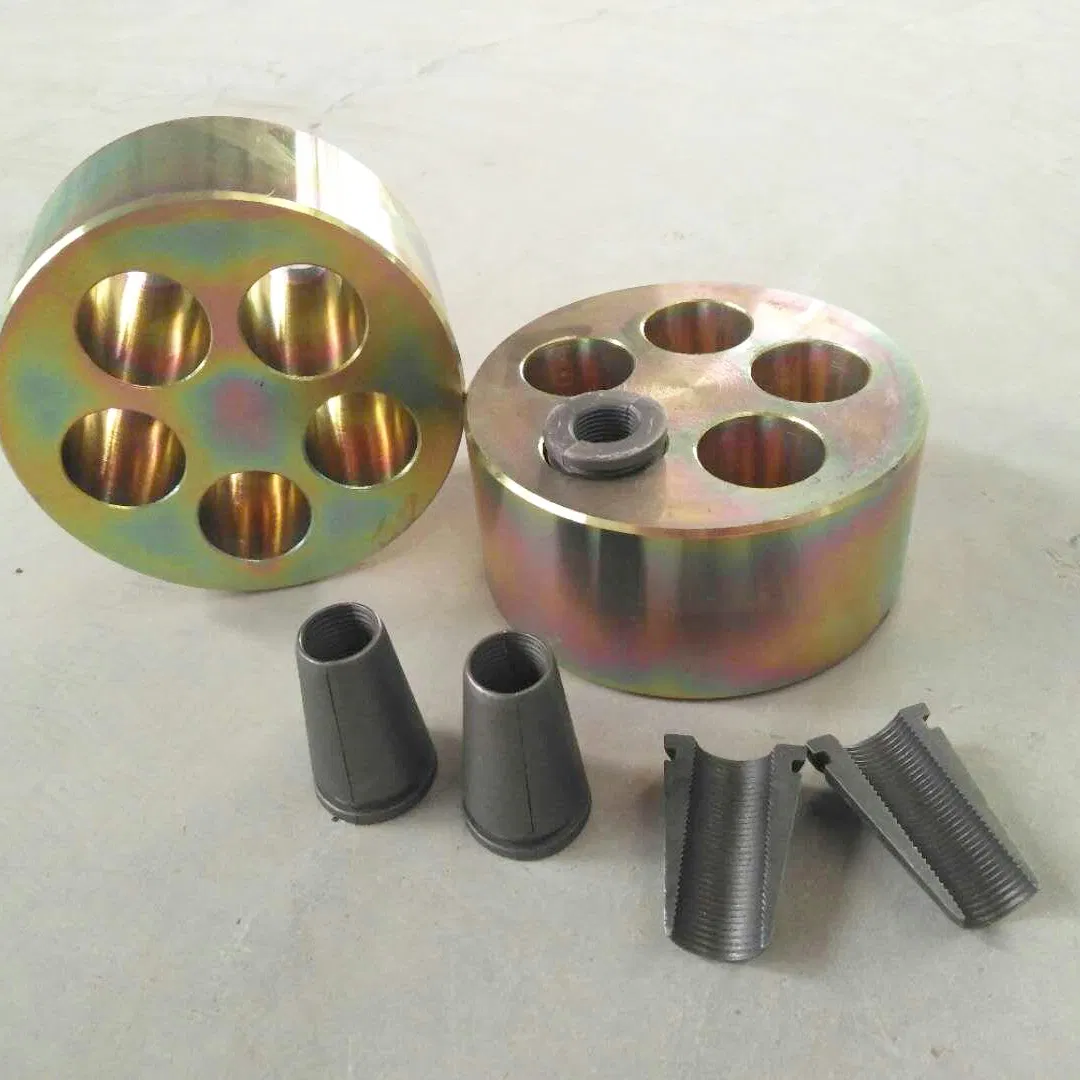

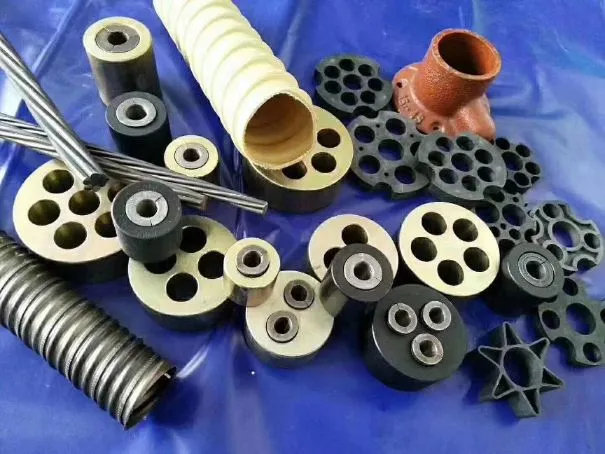

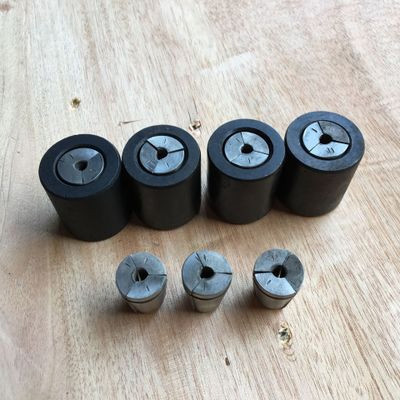

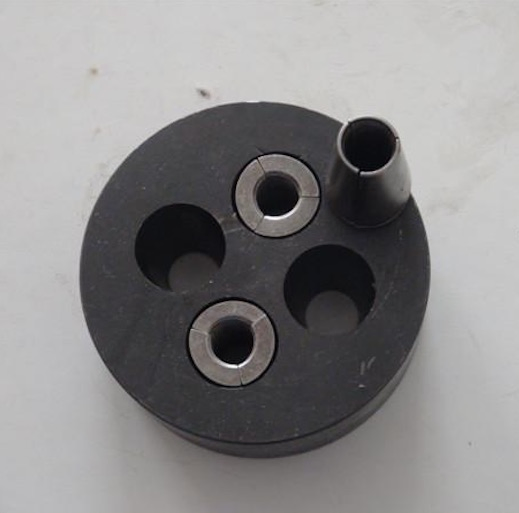

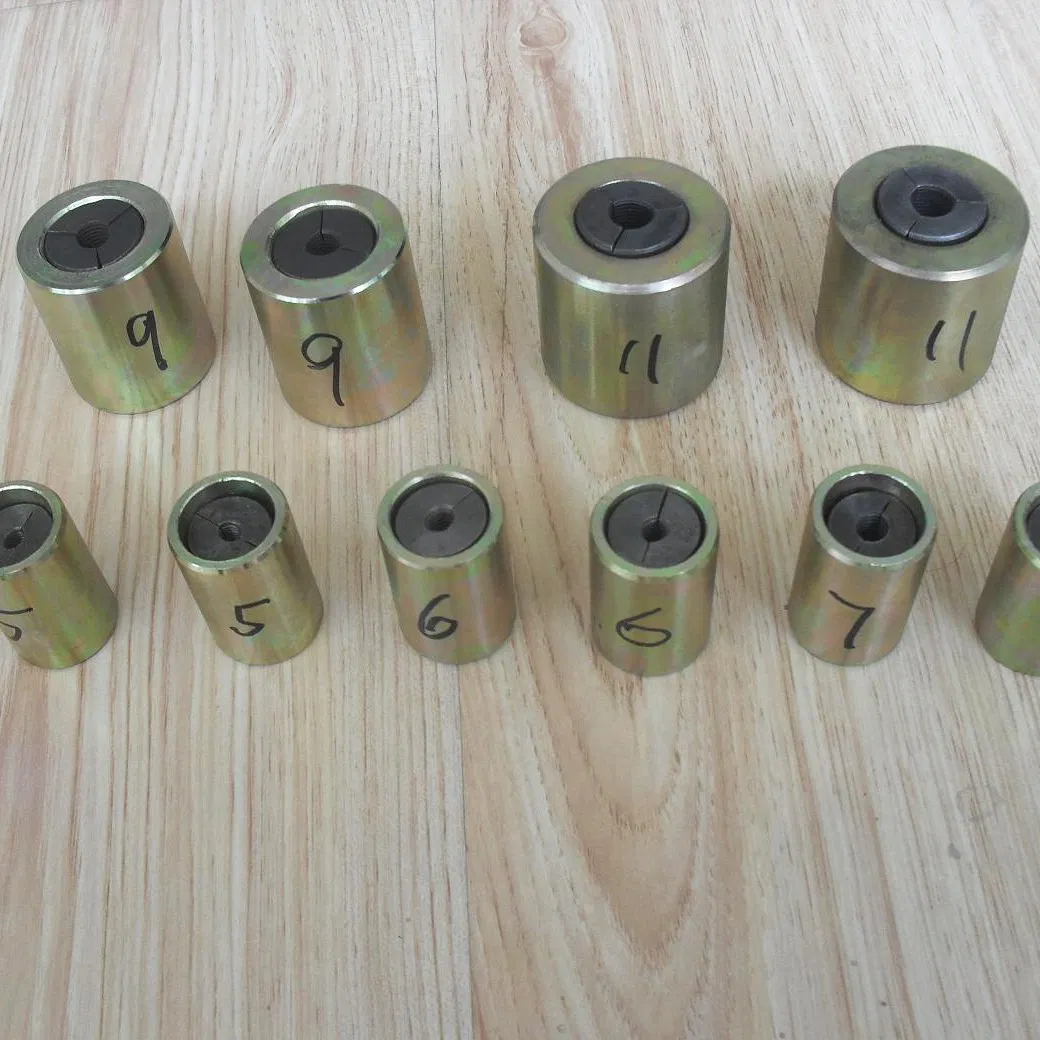

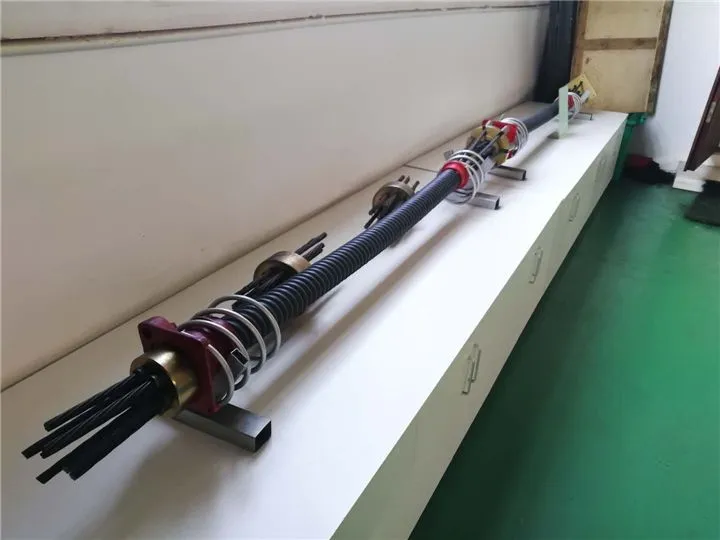

Parts: Anchor rings (anchor plates, barrels), inner wedges (grips, clamps), bearing plates (base plates, backing plates, block), spirals, limit plate, coupler (joints), ducts (bellows), spacers (separator) etc.

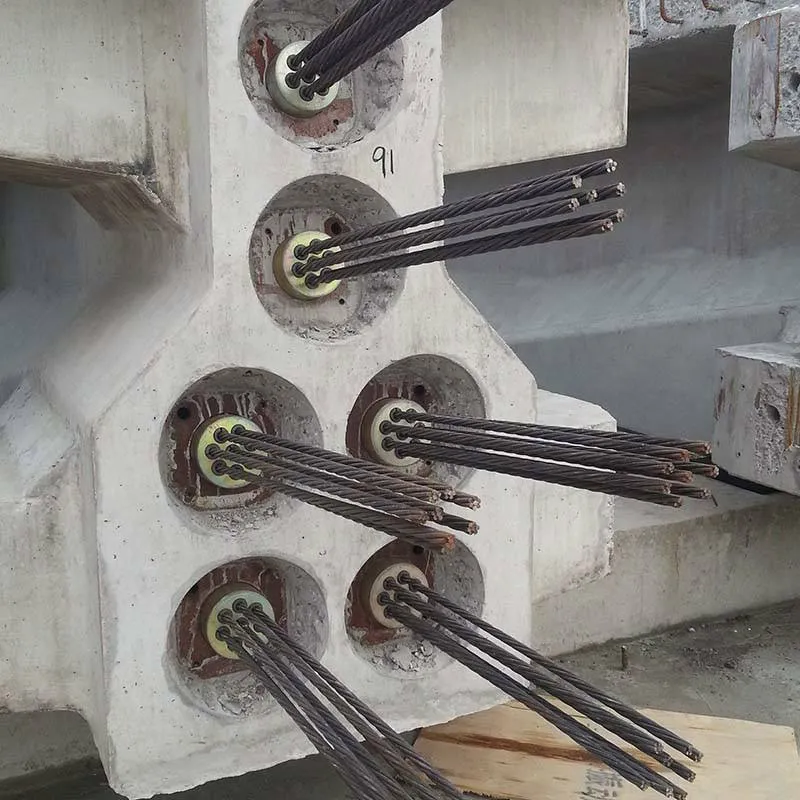

Usage: Post-tensioned concrete and pre-tensioning precast concrete, comply with 7-wire PC steel strands 9.3/9.5/9.53mm, 12.5/12.7/12.9mm, 15.2/15.24/15.7mm, 21.8mm; 3-wire PC strands 6.5/8.6/10.8mm; PC steel wires 4.0/4.8/5.0/6.0/7.0/7.5/8.0/9.0mm; PC steel bars 5.0/6.0/7.1/9.0/25/32mm etc.

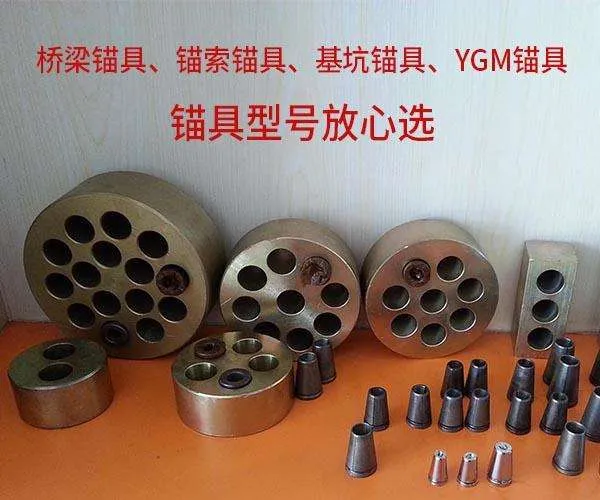

Round Anchors for strands No. from 1 to 55, Flat Anchors for strand NO. from 2 to 5.
| Anchor Models | Compatible Pre-stressed Steels Type & Size |
|---|---|
| D4, D5, D6, D7 | Indented, smooth plain, spiral ribs PC WIRE in 4mm, 4.8mm, 5mm, 6mm, 7mm |
| D7, D9, D11 | ULBON Steel PC BAR 7.1mm, 9mm, 10.7mm |
| D9 | PC STRAND 9.3mm, 9.53mm |
| D13 | PC STRAND 12.5mm, 12.7mm, 12.9mm |
| D15 | PC STRAND 15.24mm, 15.7mm |
| D22 | PC STRAND 21.6mm, 21.8mm |
| YGM25, YGM32 | PC BAR 25mm, 32mm |
